Operations Hub: Oversight and Video Streaming

    Updated

Accessing Operations Hub

Complete the following steps to access the Operations Hub:

  1. Open your browser to https://web.dronesense.com/ops
  2. Log in using your organization ID and user credentials.
  3. On the left menu bar, click the Operations Hub icon:


The Operations Hub consists of several elements: the map, the Video Dock, the Mission Manager, map tools, and the Map Layer Editor:


Choosing a Mission and Streaming

All activity on the Operations Hub is run within the context of a mission. Missions consist of drones and any additional map layers shared with the mission.

  1. Click the Mission Manager in the upper left of the map to view the currently active missions.
  2. Select a mission by clicking the name.
    If the mission you're looking for isn't listed, you can click the + button to create one or join a mission using a Mission Sharing code provided by another DroneSense user.

  3. Click on Drones & Devices list to view all the drones and other devices in the mission.


    You also can view any feature layers added to the map by opening the Map Layers list.
  4. To view all drones in the mission, click the Show All Drones icon.
  5. To view all video for drones in the mission, click the Show All Video icon.
    You also can select individual drones and feeds by clicking the corresponding icon for each drone.
  6. To view feature layers added to the map for the mission, click Map Layers and select individual elements or click the Show all Layers icon.

You now can collapse the Mission Manager again by clicking its button. As any selected drone and their feeds become available, they will automatically appear. You can always reopen it to change which drones and feeds you want to view.

Auto Join

Auto join is a feature within the Mission Manager that lets you automatically display active drones and devices on the map and the accompanying video feed in the Video Dock. There are two levels of Auto Join.

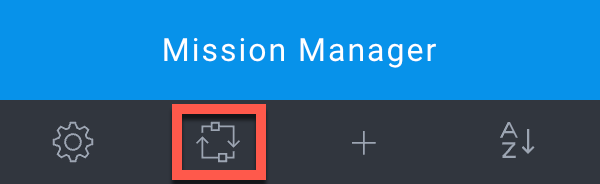

  1. The first level is on the main Mission Manager screen. If you activate Auto Join here, an active Drone & Device in any mission will automatically be displayed (and removed).
    The button will look like this when active. Click again to turn off Auto Join.

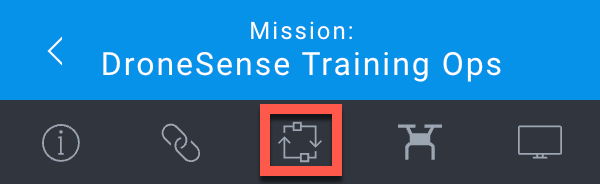

  2. The second level is within a specific mission. Begin by clicking on the name of a mission. Next, click on the Auto Join button. Only the Drones & Devices in this mission will be automatically displayed (and removed).
    *If you have turned on Auto Join on the Mission Manager screen the Auto Join icon will already show active. If you only want Auto Join active for one mission go back to the Mission Manager screen and turn off Auto Join there and return to the mission you want Auto Join active for.

    The button will look like this when active. Click again to turn off Auto Join.
